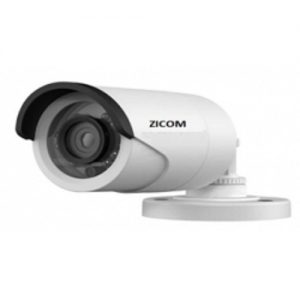

6mm Bullet Camera (2 MP)

6mm Bullet Camera (2 MP)

Key Features

  • 2MP HI-Resolution Image sensor
  • 1080P resolution with HDTVI technology
  • 18 IR smart LED & distance up to 20-30mtr
  • 6mm lens, Angel of view: 70.9⁰
  • True Day Night with IR cut filter ( ICR)
  • Long-distance real-time transmission with coaxial cable up to 500mtr
  • IP66 compliance


Signal system: PAL @25FPS
Image sensor: 1/2.9″ 2 MP Hi-Resolution Image Sensor
Effective pixel: >1920(H)x1080(V)
Horizontal resolution: 1080P @25FPS
Ir : SMT Smart IR 18 LED , 850nm, IR Distance 30Mtr.
Lens furnished: 6mm,2 Mega Pixel Lens, Angle of view:70.9°
Lens interface: M12
Signal/noise ratio: More than 80db
Shutter control: 1/25 sec to 1/1,00,000 sec
Min illumination: 0.001Lux @ (F1.2,AGC ON), 0 Lux (IR LED ON)
Synchronisation: Internal
White balance: Auto
Back light compensation: Auto
Gain control: Auto
Video output signal: Hd Analog Output
Transmission distance: Up to 500m over coaxial cable
Operating conditions: -10°C ~ +60°C, Humidity 90% or less (non-condensing)
Power supply: DC 12V ± 10%
Current, power consumption: 250ma , Max 3.5W
DIMENSION (lxwxh), WEIGHT: Φ 70 mm × 154.5 mm, 400g
